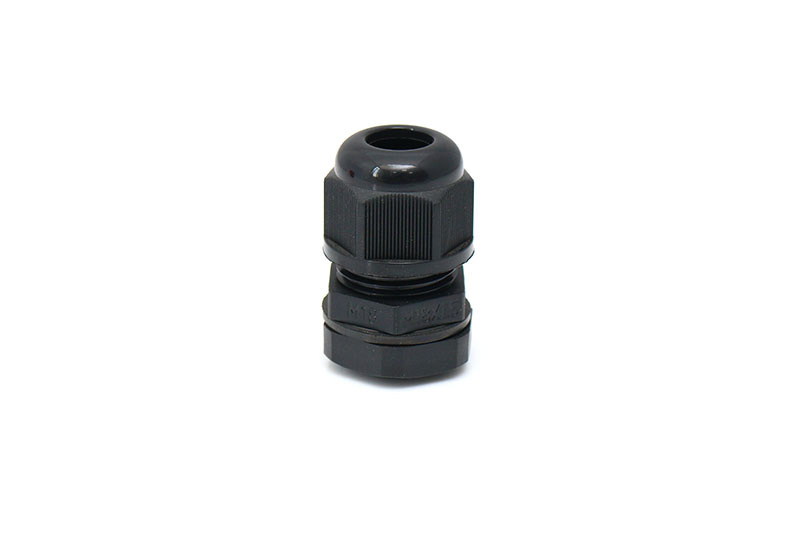

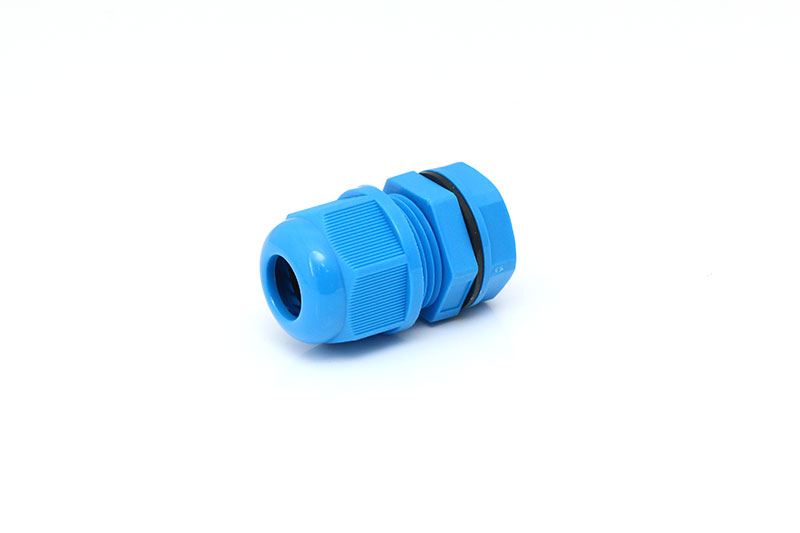

供應各種規格尺寸塑料電纜固定頭防爆格蘭頭防水接頭

分類：塑料電纜防水接頭

型號：HSK

品牌：ATR

產地：寧波市奉化區

廠家：奉化市安泰爾電器有限公司

產品詳情

產品概述

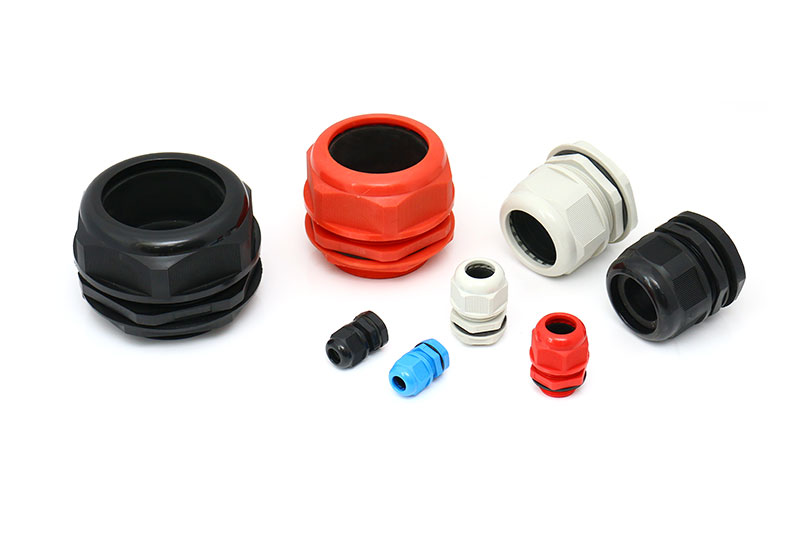

本款塑料電纜防水接頭(防爆格蘭頭固定頭)的顏色可定制，一般庫存有黑色和灰白色，目前這兩種顏色的產品我司擁有大量存貨；通過ROHS認證的保護等級IP68，采用塑料PA66，密封件采用EPDM橡膠，需要其他特性的也可以定制(如耐高溫、耐寒、抗腐蝕性)；特殊的夾緊爪和夾緊圈，使得夾緊范圍大，抗拉力強，可防塵，耐弱酸、酒精、油及一般溶劑。

結構圖

技術參數

HSK-M 公制螺紋

規格型號	螺紋規格(mm)	卡口范圍(mm)	螺紋外徑(mm)	螺紋長度(mm)	扳手尺寸(mm)	包裝單位
HSK-M8	M8x1.25	2-4.8	8	7.5	13/12	50
HSK-M10	M10*1.5	3-6	10	8	15/13	50
HSK-M12	M12x1.5	3-6.5	12	8.5	18/15	50
		3-5.5	12	8.5	18/19	50
		4-8	12	8.5	18/19	50
HSK-M16	M16x1.5	3-5.5	16	10	22/19	50
		4-8	16	10	22/19	50
		4-7	16	10	22/22	50
		6-10	16	10	22/22	50
HSK-M18	M18x1.5	4-7	18	10	24/22	50
HSK-M18	M18x1.5	6-10	18	10	24/22	50
HSK-M20	M20*1.5	4-7	20	10	27/22	50
		5-9	20	10	27/24	50
		6-12	20	10	27/24	50
		8.5-14	20	11	27/27	50
HSK-M22	M22X1.5	4-7	22	10	27/27	50
		6-11	22	11	27/27	50
		9-14	22	11	27/27	50
HSK-M24	M24X1.5	5-11	24	11	30/27	50
HSK-M24	M24X1.5	8.5-14	24	11	30/27	50
HSK-M25	M25x1.5	5-7.9	25	11.6	33/33	50
		6-11	25	11.6	33/27	50
		8.5-14	25	11.6	33/27	50
		7-13	25	11.6	33/33	50
HSK-M25	M25x1.5	12.5-18	25	11.6	33/33	50
HSK-M32	M32x1.5	8-12	32	15	41/41	20
		13-17.5	32	15	41/42	20
		18-25	32	15	41/42	20
HSK-M36	M36*1.5	18-25	36	12	45/42	20
HSK-M40	M40x1.5	18-25	40	15	50/52	10
HSK-M40	M40x1.5	24-32	40	15	50/52	10
HSK-M50	M50x1.5	22-28	50	15	62/62	10
HSK-M50	M50x1.5	31-41	50	15	62/62	10
HSK-M63	M63x1.5	35-45	63	18	75/65	10

HSK-M-L 加長型公制螺紋

規格型號	螺紋規格(mm)	卡口范圍(mm)	螺紋外徑(mm)	螺紋長度(mm)	扳手尺寸(mm)	包裝單位
HSK-M12-L	M12*1.5	3-6.5	12	15	18/15	50
		3-5.5	12	15	18/19	50
		4-8	12	15	18/19	50
HSK-M16-L	M16*1.5	3-5.5	16	15	22/19	50
		4-8	16	15	22/19	50
		4-7	16	15	22/22	50
		6-10	16	15	22/22	50
HSK-M18-L	M18*1.5	3-7	18	15	24/22	50
HSK-M18-L	M18*1.5	5-10	18	15	24/22	50
HSK-M20-L	M20*1.5	4-7	20	15	27/27	50
		5-9	20	15	27/24	50
		6-12	20	15	27/24	50
		8.5-14	20	15	27/27	50
HSK-M25-L	M25*1.5	5-7.9	25	15	33/33	50
		7-13	25	15	33/33	50
		12.5-18	25	15	33/33	50

注：應用場合：加長的螺紋長度，適合于厚板安裝。

HSK-P PG制螺紋

規格型號	螺紋規格(mm)	卡口范圍(mm)	螺紋外徑(mm)	螺紋長度(mm)	扳手尺寸(mm)	包裝單位
HSK-P7	PG7	3-6.5	12.5	8	17/15	50
HSK-P7	PG7	4-8	12.5	8	17/19	50
HSK-P9	PG9	3-5.5	15.2	8.2	22/19	50
HSK-P9	PG9	4-8	15.2	8.2	22/19	50
HSK-P11	PG11	4-7	18.6	10	24/22	50
HSK-P11	PG11	6-10	18.6	10	24/22	50
HSK-P13.5	PG13.5	5-9	20.4	10	27/24	50
HSK-P13.5	PG13.5	6-12.5	20.4	10	27/24	50
HSK-P16	PG16	4-7	22.5	10.8	30/27	50
		6-11	22.5	10.8	30/27	50
		8.5-14	22.5	10.8	30/27	50
HSK-P19	PG19	4-7	24	11	30/27	50
		6-11	24	11	30/27	50
		8.5-14	24	11	30/27	50
HSK-P21	PG21	5-7.9	28.3	12	36/33	50
		7-13	28.3	12	36/33	50
		13-18	28.3	12	36/33	50
HSK-P25	PG25	14-20	30	13	36/37	50
HSK-P29	PG29	13-17.5	37	12	46/41	20
HSK-P29	PG29	18-25	37	12	46/41	20
HSK-P36	PG36	18-25	47	15	57/52	10
HSK-P36	PG36	24-32	47	15	57/52	10
HSK-P42	PG42	22-28	54	15	64/62	10
HSK-P42	PG42	31-41	54	15	64/62	10
HSK-P48	PG48	35-45	59.3	18	70/65	10

HSK-P-L 加長型PG螺紋

HSK-P7-L	PG7	3-6.5	12.5	15	17/15	50
HSK-P9-L	PG9	3-5.5	15.2	15	22/19	50
HSK-P9-L	PG9	4-8	15.2	15	22/19	50
HSK-P11-L	PG11	4-7	18.6	15	24/22	50
HSK-P11-L	PG11	6-10	18.6	15	24/22	50
HSK-P13.5-L	PG13.5	5-9	20.4	15	27/24	50
HSK-P13.5-L	PG13.5	6-12.5	20.4	15	27/24	50
HSK-P16-L	PG16	4-7	22.5	10.8	30/27	50
		6-11	22.5	15	30/27	50
		8.5-14	22.5	15	30/27	50
HSK-P21-L	PG21	5-7.9	28.3	15	36/33	50
		7-13	28.3	15	36/33	50
		12.5-18	28.3	15	36/33	50

注：應用場合：加長的螺紋長度，適合于厚板安裝。

HSK-G G制螺紋

規格型號	螺紋規格(mm)	卡口范圍(mm)	螺紋外徑(mm)	螺紋長度(mm)	扳手尺寸(mm)	包裝單位
HSK-G1/4	G1/4	3-5.3	13.157	8.5	19/19	50
HSK-G1/4	G1/4	4-8	13.157	8.5	19/19	50
HSK-G3/8	G3/8	4-7	16.662	10	22/22	50
HSK-G3/8	G3/8	6-10	16.662	10	22/22	50
HSK-G1/2	G1/2	5-9	20.955	10	27/24	50
HSK-G1/2	G1/2	6-12.5	20.955	10	27/24	50
HSK-G3/4	G3/4	5-7.9	26.441	12	33/33	50
		7-13	26.441	12	36/33	50
		12.5-18	26.441	12	36/33	50
HSK-G1	G1	13-17.5	33.249	15	46/41	20
HSK-G1	G1	18-25	33.249	15	46/41	20
HSK-G1-1/4	G1-1/4	18-25	41.91	15	57/52	10
HSK-G1-1/4	G1-1/4	24-30	41.91	15	57/52	10
HSK-G1-1/2	G1-1/2	22-28	48	16	60/62	10
HSK-G1-1/2	G1-1/2	31-41	48	16	60/62	10

HSK-N NPT制螺紋

規格型號	螺紋規格(mm)	卡口范圍(mm)	螺紋外徑(mm)	螺紋長度(mm)	扳手尺寸(mm)	包裝單位
HSK-N1/4	NPT1/4	3-5.5	13.157	8.5	19	50
HSK-N1/4	NPT1/4	4-8	13.157	8.5	19	50
HSK-N3/8	NPT3/8	4-7	16.662	10	22	50
HSK-N3/8	NPT3/8	6-10	16.662	10	22	50
HSK-N1/2	NPT1/2	5-9	20.955	10	24	50
HSK-N1/2	NPT1/2	6-12	20.955	10	24	50
HSK-N3/4	NPT3/4	5-7.9	26.441	15	33	50
		7-13	26.441	15	33	50
		12.5-18	26.441	15	33	50
HSK-N1	NPT1	8-12	33.249	17	41	20
		13-18	33.249	17	41	20
		18-25	33.249	17	41	20
HSK-N1-1/4	NPT1 1/4	18-25	41.91	17	52	20
HSK-N1-1/4	NPT1 1/4	24-32	41.91	17	52	20
